PERMANENT MAGNETIC LIFTERS (UL - 805)

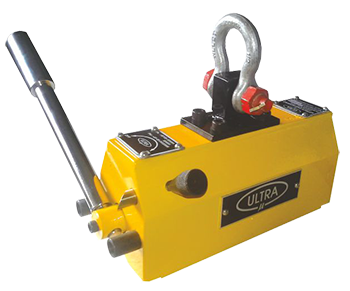

UPTECH ENGINEERING OFFERS “ULTRA” BRAND PERMANENT MAGNETIC LIFTER FROM 100KG TO 5000KG.
PERMANENT MAGNETIC LIFTERS

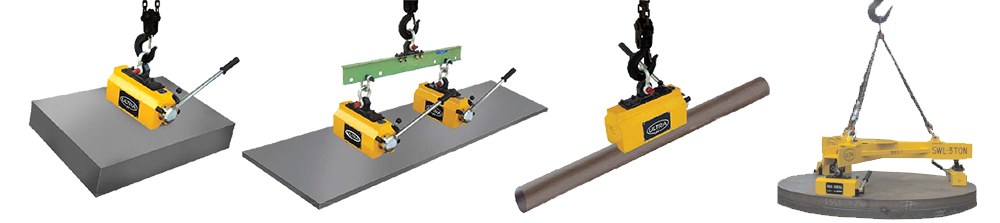

  • Use For Pickups & Transfer Ferrous Parts Like Blocks, Press Moulds, Round Bars Ets
  • Zero Electricity Required
  • Easy On - Off By Lever
  • Powerful Mdfeb Magnets Are Used
  • Spring-Loaded Device Lock Is Provided For Safety
  • Handling Of Permanent Magnetic Lifter Is Reliable, Safe, Quick Secure & Economical
  • All Necessary Safety Certificates Are Issued By Uptech Engineering.
  • Widely Use To Saving The Lifting Time.



Tested Capacity 1 : 3.5 Times

Sr. No. Cat No. Size (mm)
(Height is without hook)
Lifting Capacity
for flat job
Tested Capacity for Flat Job (1 : 3.5 Times) Weight
0 UL - 80500 90L x 65W x 85H 100kg
350kg 4kg
1 UL - 80501 170L x 85W x 105H 200kg 700kg 9kg
2 UL - 80502 170L x 85W x 105H 250kg 875kg 9kg
3 UL - 80503 230L x 85W x 105H 300kg 1050kg 13kg
4 UL - 80504 260L x 85W x 105H 450kg 1575kg 14kg
5 UL - 80512 255L x 110W x 130H 500kg 1750kg 14kg
6 UL - 80505 290L x 110W x 130H 600kg 2100kg 25kg
UL - 80506 290L x 110W x 130H 700kg 2450kg 30kg
UL - 80507 350L x 130W x 135H 1000kg 3500kg 45kg
9 UL - 80508 395L x 130W x 160H 1500kg
5250kg 68kg
10 UL - 80509 460L x 170W x 185H 2000kg 7000kg 103kg

Tested Capacity 1 : 3 Times

Sr.No. Cat No. Size (mm)
(Height is without hook)
Lifting Capacity
for flat job
Tested Capacity for Flat Job (1 : 3 Times) Weight
0 UL - 80500 / A 90L x 65W x 85H 100kg 300kg 4kg
1 UL - 80501 / A 170L x 85W x 105H 200kg 600kg 9kg
2 UL - 80502 / A 170L x 85W x 105H 250kg 750kg 9kg
3 UL - 80503 / A 230L x 85W x 105H 300kg 900kg 13kg
4 UL - 80504 / A 260L x 85W x 105H 450kg 1350kg 14kg
5 UL - 80512 / A 255L x 110W x 130H 500kg 1500kg 14kg
6 UL - 80505 / A 290L x 110W x 130H 600kg 1800kg 25kg
UL - 80506 / A 290L x 110W x 130H 700kg 2100kg 30kg
UL - 80507 / A 350L x 130W x 135H 1000kg 3000kg 45kg
9 UL - 80508 / A 395L x 130W x 160H 1500kg 4500kg 68kg
10 UL - 80509 / A 460L x 170W x 185H 2000kg 6000kg 103kg
11 UL - 80510 / A 555L x 270W x 270H 3000kg 9000kg 280kg
12 UL - 80511 / A 715L x 350W x 310H 5000kg 15000kg 540kg
